Incision

You should agree what blade to use in your hospital or practice and standardize your 'Plan D' equipment.

These broad blades are all wide enough to allow insertion of a 6 mm ETT through an incision in the cricothyroid membrane (CTM). The type of incision recommended depends on whether you can clearly identify the CTM through the skin.

The CTM may be:

You should agree what blade to use in your hospital or practice and standardize your 'Plan D' equipment.

The CTM may be:

  • Palpable

A single, horizontal stab incision through skin and CTM is recommended. A loss of resistance is felt in one pass as the knife enters the trachea.

You should agree what blade to use in your hospital or practice and standardize your 'Plan D' equipment.

The CTM may be:

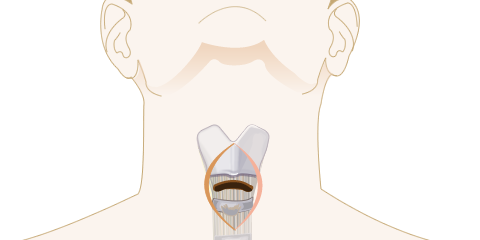

If the midline and/or bony structures cannot be identified, a vertical incision through the skin only is recommended.

Blunt dissection using your fingers or an instrument such as curved Spencer Wells forceps or a tracheal dilator is recommended.

Once you identify the CTM, a horizontal incision is made as for the palpable CTM incision. The cricothyroidotomy incision can be enlarged if required by a gentle rocking motion of the blade. The blade is then turned 90 degrees to open the incision.

Spencer Wells forceps (top) and tracheal dilator (bottom)
